ACRAD MWM
(ACRAD MWM: Akshar CoPack RADiant Met PET Film + Woven Fabric + Met PET Film)

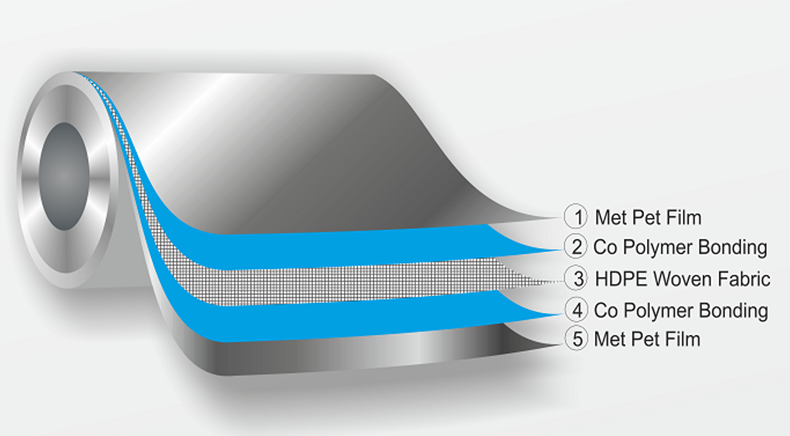

ACRAD MWM is a premium 5-layer product composed of met pet film, HDPE woven fabric and met pet film. This combination results in a top-class product with high quality and excellent performance. The radiant barrier is primarily used as attic insulation, especially in under-roof applications. It also provides effective protection for industrial and commercial buildings against temperature variations, including extreme heat and cold and is suitable for a wide range of thermal insulation applications.
Technical Specification:
| Physical Property | Basic Weight | Tensile Md & Cd | Brust Strength | Temperature Resistant | Reflectivity | Emissivity | Working Temperature |
|---|---|---|---|---|---|---|---|
| Test Value | 130-140 GSM | 200-300 N/25 mm | 240-260 N/25 mm | Remains Flexible No Delamination | 95% | 0.03% | -50 to 110 °C |
| Test Method | Scale | ASTM D 828 | ASTM D 774 | ASTM C 1263 -29 ~ 66 °C | ASTM E 408 | ASTME408 | Celsius |
**Customized GSM, Thickness, Roll in Size Available as per Client Requirement with Standard Packing.
Remarks: "The technical information provided above represents expected outcomes and is not guaranteed. Product tolerances are: weight & thickness ±10%, width ±5 mm, length ±0.10%. Store the product away from moisture and direct heat at room temperature. Please perform a test application to ensure suitability for your intended purpose before final use."
Features
- 🛡️ Five-layer high-performance composite structure
- ✨ Metallized PET film acting as an effective radiant barrier
- 💪 Strong HDPE woven fabric core for enhanced durability
- 📏 Lightweight, puncture-resistant, and easily foldable
- 🌿 Eco-friendly and industry-compatible material
- ⚡ Durable and long-lasting thermal protection
Applications
- 🏠 Under-roof and attic insulation systems
- 🏢 Commercial and industrial building projects
- 🏭 Warehouses and manufacturing shed solutions
- 🛒 Mega store and cold chain setups
- 🧊 Thermal logistics and pallet protection
- 🚛 Temperature-sensitive product transit management
Product Benefits
- 🔥 Blocks up to 95% of radiant heat
- ❄️ Protects interiors from extreme temperature conditions
- 📊 Reduces temperature fluctuations within structures
- 🌡️ Maintains optimal climate for temperature-sensitive products
- 🚚 Ensures safe transit and storage of goods
- 💰 Energy-efficient solution that helps reduce operational costs
