ACRAD AWM
(ACRAD AWM: Akshar CoPack RADiant Aluminium Foil + Woven Fabric + Met PET Film)

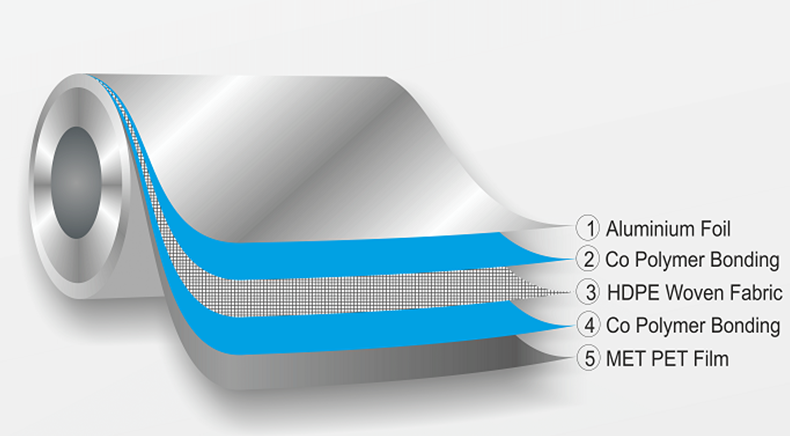

ACRAD AWM is a premium 5-layer product composed of aluminium foil, HDPE woven fabric and met pet film. This combination results in a top-class product with high quality and excellent performance. The radiant barrier is primarily used as attic insulation, especially in under-roof applications. It also provides effective protection for industrial and commercial buildings against temperature variations, including extreme heat and cold and is suitable for a wide range of thermal insulation applications.
Technical Specification:
| Physical Property | Basic Weight | Tensile Md & Cd | Brust Strength | Temperature Resistant | Reflectivity | Emissivity | Working Temperature |
|---|---|---|---|---|---|---|---|
| Test Value | 140-150 GSM | 200-300 N/25 mm | 240-260 N/25 mm | Remains Flexible No Delamination | 97% | 0.03% | -50 to 110 °C |
| Test Method | Scale | ASTM D 828 | ASTM D 774 | ASTM C 1263 -29 ~ 66 °C | ASTM E 408 | ASTME408 | Celsius |
**Customized GSM, Thickness, Roll in Size Available as per Client Requirement with Standard Packing.
Remarks: "The technical information provided above represents expected outcomes and is not guaranteed. Product tolerances are: weight & thickness ±10%, width ±5 mm, length ±0.10%. Store the product away from moisture and direct heat at room temperature. Please perform a test application to ensure suitability for your intended purpose before final use."
Features
- 🛡️ 5-layer construction with foil, HDPE, and Met PET layers
- 🧵 High-strength woven HDPE fabric material
- 📏 Lightweight, easy to fold, and handle
- 🔧 Puncture-resistant design for longer product life
- ♻️ Eco-sustainable and environmentally friendly composition
- 🏭 Suitable for large-scale industrial applications
Applications
- 🏠 Attic and under-roof thermal protection
- 🏭 Large warehouse and manufacturing ceilings
- ❄️ Cold chain and thermal logistics packaging
- 📦 Specialized pallet covers and heat shields
- 🏢 Industrial and commercial building insulation
- 🏪 Versatile solution for multiple industrial applications
Benefits
- 🌡️ Protects against extreme temperature fluctuations
- 💡 Enhances energy efficiency and reduces heat gain
- 💪 Durable, low maintenance, and reduces replacement costs
- 🌿 Eco-friendly materials with minimal environmental impact
- ⚡ Improves overall thermal performance of buildings
- 💰 Saves cost, energy, and operational resources
