ACRAD AWA
(ACRAD AWP: Akshar CoPack RADiant Radiant Aluminium Foil + PE)

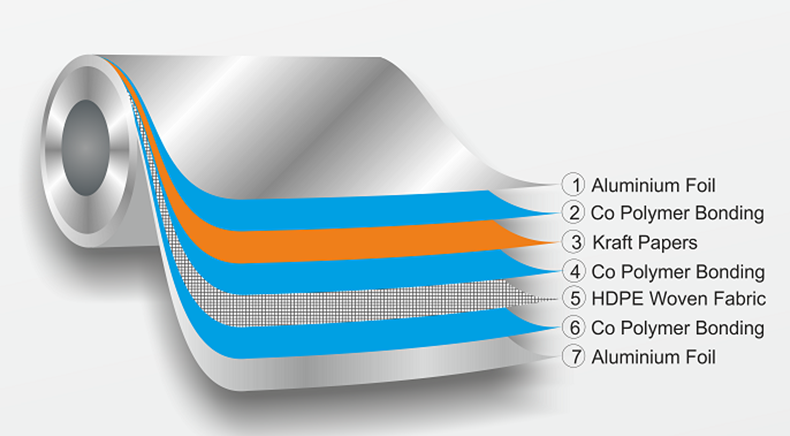

ACRAD AWP is a premium 5-layer product made from aluminium foil, specially designed HDPE woven fabric and special-purpose resins, resulting in a top-class product with high quality and excellent performance. This radiant barrier is primarily used as attic insulation, especially in under-roof applications. It also provides effective protection for industrial and commercial buildings against temperature variations, including extreme heat and cold and is suitable for a wide range of thermal insulation applications.
Technical Specification:
| Physical Property | Basic Weight | Tensile Md & Cd | Brust Strength | Temperature Resistant | Reflectivity | Emissivity | Working Temperature |
|---|---|---|---|---|---|---|---|
| Test Value | 150-160 GSM | 300-400 N/25 mm | 315 N/25 mm | Remains Flexible No Delamination | 97% | 0.03% | -50 to 110 °C |
| Test Method | Scale | ASTM D 828 | ASTM D 774 | ASTM C 1263 -29 ~ 66 °C | ASTM E 408 | ASTME408 | Celsius |
** Customized GSM, Thickness, Roll in Size Available as per Client Requirement with Standard Packing.
Remarks: "The technical information provided above represents expected outcomes and is not guaranteed. Product tolerances are: weight & thickness ±10%, width ±5 mm, length ±0.10%. Store the product away from moisture and direct heat at room temperature. Please perform a test application to ensure suitability for your intended purpose before final use."
Features
- 🧵 Durable HDPE woven cloth offering high strength, endurance, and long-lasting performance
- ⚖️ Low weight design facilitating easy handling, storage, and transportation
- 💪 Puncture-resistant and flexible material that is soft, foldable, and easy to install
- 🌧️ Moisture-resistant and corrosion-resistant properties
- 🏗️ Industry-friendly design suitable for large-scale deployment
- 🔄 Eco-friendly and recyclable material composition
Application
- 🏠 Attic insulation under roofing
- 🏭 Large warehouse ceilings
- 🏗️ Manufacturing sheds
- 🏪 Mega retail stores
- ❄️ Cold chain installations
- 📦 Thermal logistics packaging
Benefits
- 💰 Saves energy and lowers cooling costs
- ⚙️ Ideal for industrial and commercial applications
- 🛠️ Lightweight and easy to handle during installation
- 🌿 Eco-friendly solution supporting green building initiatives
- 🔥 Protects roofing systems and reduces heat stress
- ♻️ Durable, low-maintenance, and long-lasting performance
