ACRAD AW
(ACRAD AW: Akshar Copack RADiant Aluminium Foil + Woven Fabric)

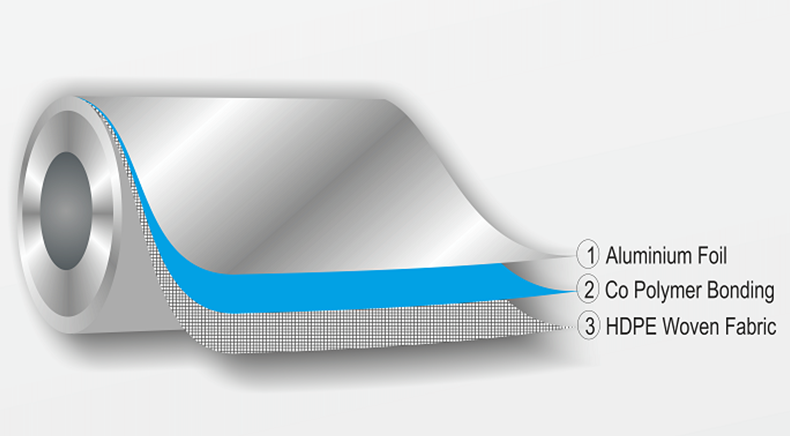

It’s a premium 3-layer product produced from aluminium foil with Special design HDPE Woven Fabric and special purpose resins, which results in one of the top-class products, high quality and effective performance. The use of radiant barriers can be done as attic insulation majorly in under roofing applications; it also protects Industrial and Commercial buildings from temperature variations such as extreme heat and cold and all kinds of thermal insulation applications.
Technical Specification:
| Physical Property | Basic Weight | Tensile Md & Cd | Brust Strength | Temperature Resistant | Reflectivity | Emissivity | Working Temperature |
|---|---|---|---|---|---|---|---|
| Test Value | 110-120 GSM | 250-300 N/25 mm | 250-265 N/25 mm | Remains Flexible No Delamination | 97% | 0.03% | -50 to 110 °C |
| Test Method | Scale | ASTM D 828 | ASTM D 774 | ASTM C 1263 -29 ~ 66 °C | ASTM E 408 | ASTME408 | Celsius |
**Customized GSM, Thickness, Roll in Size Available as per Client Requirement with Standard Packing.
Remarks: Our Technical Information above are expected outcomes and not the output assured. Tolerance: weight and thickness: ±10%; width: ±5 mm; length: ±0.10%; Products should be kept away from wet and heat supply at room temperature. Please take the test-application to ensure the product will support the particular purpose as needed before finally putting it to use.
Features
- 🛡️ Premium 3-layer aluminium foil design
- 🧵 HDPE woven fabric for enhanced durability
- 🧪 Special-purpose resins to prevent delamination
- 🌟 High reflectivity performance up to 97%
- 🌡️ Temperature resistance ranging from -50°C to 110°C
- 📏 Customizable GSM, thickness, and roll size options
Applications
- 🏠 Attic insulation under roofing
- 🏭 Industrial building temperature control
- 🏢 Commercial warehouse ceiling protection
- ❄️ Cold chain and thermal logistics
- 🏗️ Manufacturing sheds and mega stores
- 📦 Pallet covering and heat protection
Benefits
- 🔥 Effectively reduces radiant heat transfer
- ⚡ Enhances energy efficiency in roofing systems
- 🪶 Lightweight structure for easy handling and installation
- 🛠️ Puncture-resistant and industry-friendly material
- ♻️ Soft, fast-folding, and eco-sustainable design
- ⏳ Long-lasting performance with high endurance
