ACRAD ANWP
(ACRAD ANWP: Akshar CoPack RADiant Aluminium Foil + Non-Woven Fabric + PE)

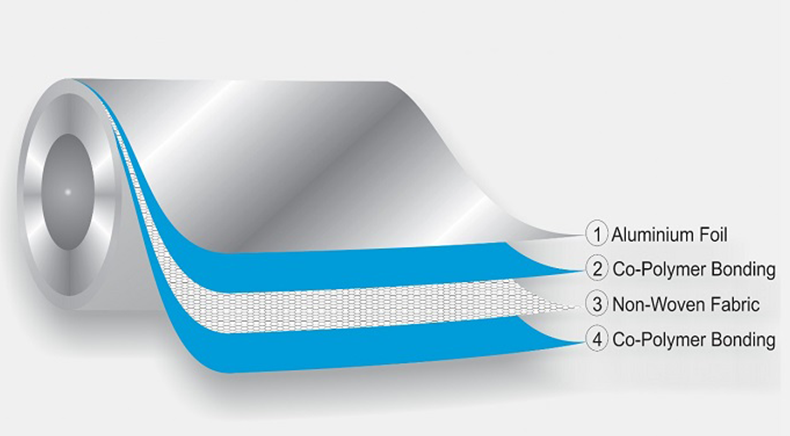

ACRAD ANWP is a premium 5-layer product composed of aluminium foil, specially designed non-woven fabric and pe, combined with special-purpose resins. This results in a top-class product with high quality and excellent performance. The radiant barrier is primarily used as attic insulation, especially in under-roof applications. It also provides effective protection for industrial and commercial buildings against temperature variations, including extreme heat and cold and is suitable for a wide range of thermal insulation applications.
Technical Specification:
| Physical Property | Basic Weight | Tensile Md & Cd | Brust Strength | Temperature Resistant | Reflectivity | Emissivity | Working Temperature |
|---|---|---|---|---|---|---|---|
| Test Value | 130-140 GSM | 100-200 N/25 mm | 150-170 N/25 mm | Remains Flexible No Delamination | 97% | 0.03% | -50 to 110 °C |
| Test Method | Scale | ASTM D 828 | ASTM D 774 | ASTM C 1263 -29 ~ 66 °C | ASTM E 408 | ASTME408 | Celsius |
**Customized GSM, Thickness, Roll in Size Available as per Client Requirement with Standard Packing.
Remarks: "The technical information provided above represents expected outcomes and is not guaranteed. Product tolerances are: weight & thickness ±10%, width ±5 mm, length ±0.10%. Store the product away from moisture and direct heat at room temperature. Please perform a test application to ensure suitability for your intended purpose before final use."
Features
- 🛡️ 5-layer construction with aluminium foil
- 🧵 High-strength, durable non-woven cloth
- 🔄 Soft, flexible material that is easy to apply
- 🌡️ Excellent thermal and radiant barrier performance
- 🏗️ Suitable for multiple industrial applications
- ⚖️ Lightweight and easy to handle
Applications
- 🏠 Attic insulation and roof protection
- 🏭 Warehouses, sheds, and mega stores
- ❄️ Cold chain and logistics packaging
- 📦 Industrial pallet and heat covering
- 🔥 Radiant heat reduction applications
- 🏢 Thermal insulation for all structures
Benefits
- 🌡️ Blocks up to 97% of radiant heat
- 🛡️ Protects against extreme heat and cold conditions
- 🏢 Improves overall insulation performance efficiently
- ⚖️ Lightweight, easy to handle, and quick to install
- 🌿 Eco-friendly and industry-sustainable solution
- 💰 Saves energy and reduces operational costs
