ACRAD AFKA
(ACRAD AFKA: Akshar CoPack RADiant Aluminium Foil + Fiberglass Scrim + Kraft Paper + Aluminium Foil)

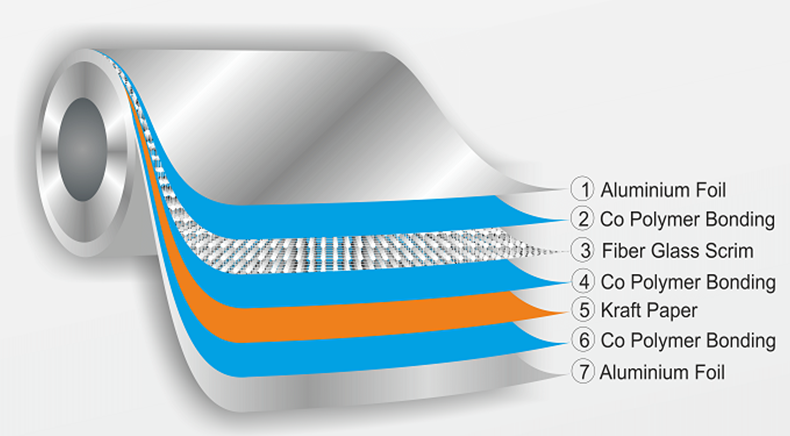

ACRAD AFKA is a premium 7-layer product composed of aluminium foil, special fiberglass scrim, kraft paper and aluminium foil. This combination results in a top-class product with high quality and excellent performance. The radiant barrier is primarily used as attic insulation, especially in under-roof applications. It also provides effective protection for industrial and commercial buildings against temperature variations, including extreme heat and cold and is suitable for a wide range of thermal insulation applications.
Technical Specification:
| Physical Property | Basic Weight | Tensile Md & Cd | Brust Strength | Temperature Resistant | Reflectivity | Emissivity | Working Temperature |
|---|---|---|---|---|---|---|---|
| Test Value | 100-160 GSM | 200-300 N/25 mm | 240-260 N/25 mm | Remains Flexible No Delamination | 97% | 0.03% | -50 to 110 °C |
| Test Method | Scale | ASTM D 828 | ASTM D 774 | ASTM C 1263 -29 ~ 66 °C | ASTM E 408 | ASTME408 | Celsius |
**Customized GSM, Thickness, Roll in Size Available as per Client Requirement with Standard Packing.
Remarks: "The technical information provided above represents expected outcomes and is not guaranteed. Product tolerances are: weight & thickness ±10%, width ±5 mm, length ±0.10%. Store the product away from moisture and direct heat at room temperature. Please perform a test application to ensure suitability for your intended purpose before final use."
Features
- 🔥 Reduces radiant heat transfer by up to 97%
- 🏗️ Reinforced fiberglass-scrim composite structure
- 📏 Lightweight and flexible for easy handling
- 🌿 Eco-conscious and sustainable material composition
- 🏭 Designed for demanding industrial environments
- ⚡ Easy to cut and quick to install
Application
- 🏠 Attic and commercial roof insulation
- 🏭 Industrial warehouse ceiling thermal lining
- 🏪 Large-format retail space thermal coverage
- ❄️ Cold chain logistics and thermal packaging
- 🛡️ Custom protective covers and thermal shields
- 🧵 Professional seams using foil tape
Product Benefits
- 🌡️ Efficiently blocks both heat and cold
- 💰 Significantly reduces HVAC energy expenses
- 💪 Strong, puncture-resistant, and durable material
- 🔄 Versatile across multiple industrial applications
- ⚡ Lightweight for labour-efficient installation
- ✅ Quickly improves overall thermal performance
