ACRAD AFK
(ACRAD AFK: Akshar CoPack RADiant Aluminium Foil + Fiberglass Scrim + Kraft Paper)

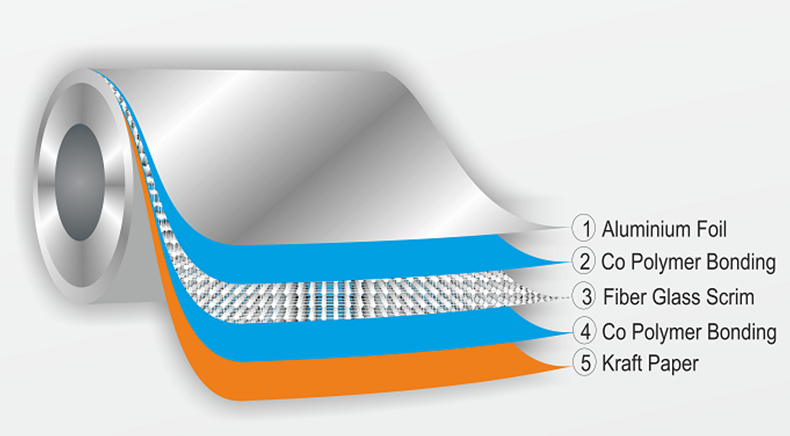

ACRAD AFK is a premium 5-layer product composed of aluminium foil, special fiberglass scrim and kraft paper. This combination results in a top-class product with high quality and excellent performance. The radiant barrier is primarily used as attic insulation, especially in under-roof applications. It also provides effective protection for industrial and commercial buildings against temperature variations, including extreme heat and cold and is suitable for a wide range of thermal insulation applications.
Technical Specification:
| Physical Property | Basic Weight | Tensile Md & Cd | Brust Strength | Temperature Resistant | Reflectivity | Emissivity | Working Temperature |
|---|---|---|---|---|---|---|---|
| Test Value | 100-140 GSM | 200-300 N/25 mm | 240-260 N/25 mm | Remains Flexible No Delamination | 97% | 0.03% | -50 to 110 °C |
| Test Method | Scale | ASTM D 828 | ASTM D 774 | ASTM C 1263 -29 ~ 66 °C | ASTM E 408 | ASTME408 | Celsius |
**Customized GSM, Thickness, Roll in Size Available as per Client Requirement with Standard Packing.
Remarks: "The technical information provided above represents expected outcomes and is not guaranteed. Product tolerances are: weight & thickness ±10%, width ±5 mm, length ±0.10%. Store the product away from moisture and direct heat at room temperature. Please perform a test application to ensure suitability for your intended purpose before final use."
Features
- 🛡️ 5-layer construction with foil, scrim, and kraft layers
- 💪 High-strength, puncture-resistant, and long-lasting material
- ☀️ Aluminium foil effectively reflects radiant heat
- 🔄 Versatile usage across industrial, commercial, and specialized applications
- 📏 Lightweight, flexible, and easy to install
Applications
- 🏠 Attic insulation under roofing structures
- 🏭 Warehouses and manufacturing shed ceilings
- 🏪 Mega stores and commercial buildings
- ❄️ Cold chain facilities and thermal packaging
- 🧵 Foil tape applications, pallet covers, and protective wrapping
- 🛡️ Specialized heat-resistant protection solutions
Benefits
- 🔥 Blocks up to 97% of radiant heat
- 🌡️ Protects against extreme heat and cold conditions
- 💡 Improves energy efficiency and overall insulation performance
- ⚖️ Lightweight, easy to fold, handle, and install
- 🌿 Eco-friendly, industry-compatible, and sustainable solution
